Single Door Access Control
Brand: ZEBRA
Model: F6
Origin: Taiwan
Features:
Specification:
|
User Capacity Fingerprint Card PIN |
3000 500 2000 500 |
|
Operation Voltage Idle Current Active Current |
+12V 60ma 120ma |
|
Fingerprint Reader Resolution Identification time FAR FRR |
Optical Fingerprint Module 500DPI <1S <0.0001% <0.01% |
|
Proximity Card Reader Radio Technology Read Range |
Industry Standard 26 bits 125KHz Industry Proximity EM Card 2~7 cm |
|
PIN Reader |
6~8 digits PIN |
|
Wiring Connections |
Relay Output, Exit Button, DOTL, Alarm, Wiegand Output, Door Bell |
|
Communication |
USB for downloading/uploading |
|
Relay Adjustable Relay Output Time Lock Output Load Alarm Output Load |
One (NO, NC, Common) 1-99 Seconds (5 seconds default) 2 Amp Maximum 5 Amp Maximum |
|
Wiegand Interface |
Wiegand 26 bits Format Output |
|
Environment Operating Temperature Operating Humidity |
Indoor -20oC~+50oC 20%RH-90%RH |
|
Physical Dimensions Unit Weight Shipping Weight |
ABS Enclosure 88mm *88mm* 30mm 350g 400g |

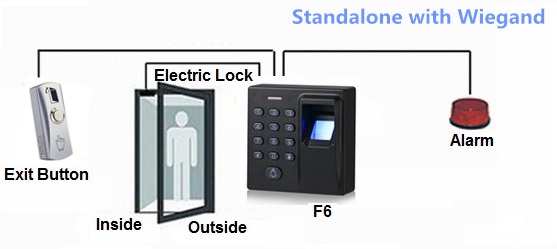

System Diagram:
