Fingerprint Access Control with Time attendance
Brand: ZEBRA
Model: F5
Origin: Taiwan
Features:
Specification:
| User Capacity | 3000 |
| Fingerprint | 1000 |
| Card | 1000 |
| PIN | 1000 |
| Operation Voltage | +12V |
| Access Mode: | Fingerprint ,Card, PIN, Fingerprint & Card, Fingerprint & PIN |
| Fingerprint Reader | Optical Fingerprint Module |
| Resolution | 500DPI |
| Identification time | <1S |
| FAR | <0.0001% |
| FRR | <0.01% |
| Proximity Card Reader | Industry Standard 26 bits |
| Radio Technology | 125KHz Industry Proximity EM Card |
| Read Range | 2~7 cm |
| PIN Reader | 1~8 digits PIN |
| Wiring Connections | Relay Output, Exit Button, DOTL, Alarm, Wiegand output,Wiegand Input, Door Bell |
| Communication |
USB?RS485?TCP/IP USB for downloading/uploading |
| Relay | One (NO, NC, Common) |
| Adjustable Relay Output Time | 1-99 Seconds (5 seconds default) |
| Lock Output Load | 2 Amp Maximum |
| Alarm Output Load | 5 Amp Maximum |
| Wiegand Interface | Wiegand 26 bits Input & Output |
| Environment | Indoor |
| Operating Temperature | -20oC~+50oC |
| Operating Humidity | 20%RH-90%RH |
| Physical | ABS Enclosure |
| Dimensions | F5 – L140 x W105 x D35.0 (mm) |
| Unit Weight | 300g |
| Shipping Weight | 500g |

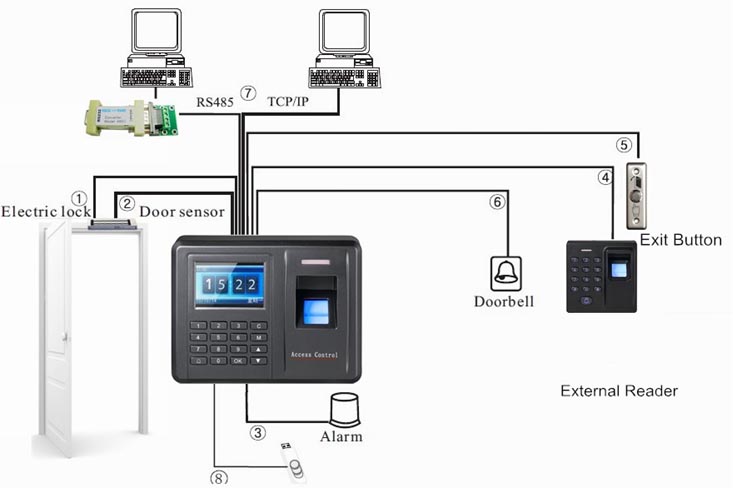

System Diagram:
