1ch Video Surge Protector
Mode: USP201V
Description: USP201V is a single channel video surge protection device, which is designed with reference to IEC61643-21:2000. The default working voltage is 5V, while the maximum sustaining working voltage is 6V. The voltage protection is less than 20V, and it possesses the following advantages, such as multi-level
Specification:
|
Item
|
Specification
|
|
|
Video
|
Rated Operating Voltage
|
5V
|
|
Max Continuous Operational Voltage
|
6V
|
|
|
Nominal Discharge Current (8/20µs)
|
5KA
|
|
|
Max Discharge Current(8/20µs)
|
10KA
|
|
|
Impulse Limiting Voltage(10/700µs)
|
<36V
|
|
|
Insulation resistance
|
≥0.4MΩ
|
|
|
Inserting Loss
|
≤0.5dB
|
|
|
VSWR
|
≤1.2
|
|
|
Signal Bandwidth
|
10MHz
|
|
|
Response time
|
≤1ns
|
|
|
Environment
|
Working Temperature
|
-20~55oC
|
|
Storage Temperature
|
-40~70oC
|
|
|
Humidity
|
0-95%
|
|
|
Appearance
|
N.W.
|
68g
|
|
Size
|
65mm×25mm×25mm
|
|
|
Material
|
Aluminum
|
|
|
Stability
|
MTBF
|
>30000hr
|

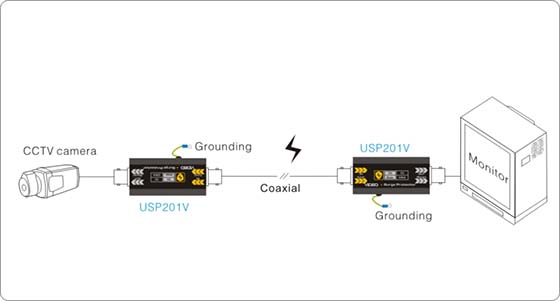

Application:
