1ch Passive Video UTP Transceiver
Mode:UTP101P-C2
Description:UTP101P-C2 is a single channel passive video transceiver. Use CAT5/5e/6 UTP cable as transmission medium, can realize real-time transmit 1 channel color or PAL, NTSC, SECAM composite video signals. In practical project, the device can work as transmitter or receiver, and it can also work together with UTP1XXP and UTP1XXAR series passive or active video UTP transceivers. It features long distance transmission, good transmission effect, strong anti-interference. Widely used in security, teaching industry and other complex system environment.
Specification:
|
Item |
Specification |
|
|
Properties |
Transmission signal |
1 channel |
|
Transmission distance |
300m(with passive) 1500m(with active) |
|
|
Video transmission properties and port |
Coaxial video connector |
BNC -M |
|
Twisted-pair video connector |
RJ45 |
|
|
Compatible Format |
PAL, NTSC, SECAM |
|
|
Signal transmission band |
0-6MHz |
|
|
Anti-interference |
>60db |
|
|
Interface Protection |
2KV 10/700us Per:IEC61000-4-5 |
|
|
Protection |
ESD |
1a contact discharge electricity level 3 |
|
Reliable |
MTBF |
>10000H |
|
Physical Properties |
Size(L*W*H) |
35mm*19mm*15mm |
|
Shell |
Iron materials |
|
|
Color |
Black |
|
|
N.W |
2.0kg |
|
|
Environmental |
Operating Temperature |
-10~55oC |
|
Storage Temperature |
-20-70oC |
|
|
Humidity |
0-95% (non-condensing) |
|

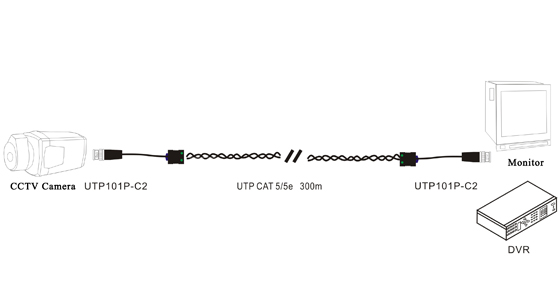

Application:
