1ch Passive Video UTP Transceiver
Mode: UTP101P-C1
Description: UTP101P-C1 (UTP101P-IV) is a single channel passive video transceiver. Use CAT5/5e/6 UTP cable as transmission medium, can realize real-time transmit 1 channel color or PAL, NTSC, SECAM composite video signals. In practical project, the device can work as transmitter or receiver, and it can also work together with UTP1XXP and UTP1XXAR series passive or active video UTP transceivers. It features long distance transmission, good transmission effect, strong anti-interference. Widely used in security, teaching industry and other complex system environment.
Specification:
|
Item |
Specification |
|
|
Properties |
Transmission signal |
1 channel |
|
Transmission distance |
300m(working with passive product) |
|
|
Video transmission properties and port |
Coaxial video connector |
BNC-M |
|
Twisted-pair video connector |
Push-terminal 2channel terminal(free screw ) |
|
|
Compatible Format |
PAL?NTSC?SECAM |
|
|
Signal transmission band |
0-6MHz(-3db) |
|
|
Anti-interference |
>60db |
|
|
Coaxial video interface protection |
2KV(common-mode) |
|
|
Twisted-pair video transmission interface protection |
2KV(different-mode),4KV(common-mode) |
|
|
Protection |
ESD |
1a contact discharge electricity level 3 |
|
Reliable |
MTBF |
>10000H |
|
Physical Properties |
Size(L*W*H) |
55mm*19mm*15mm(with interface cable) |
|
Shell |
ABS |
|
|
Color |
Black |
|
|
N.W |
15.5g |
|
|
Environmental |
Operating Temperature |
-10-55oC |
|
Storage Temperature |
-20-70oC |
|
|
Humidity |
0-95% (non-condensing) |
|

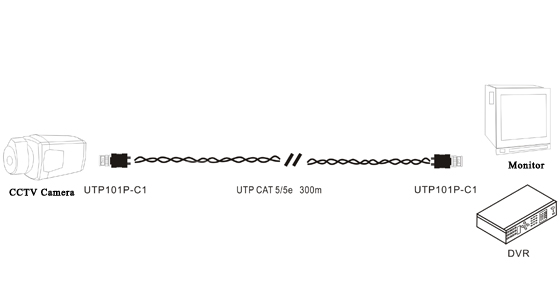

Application:
