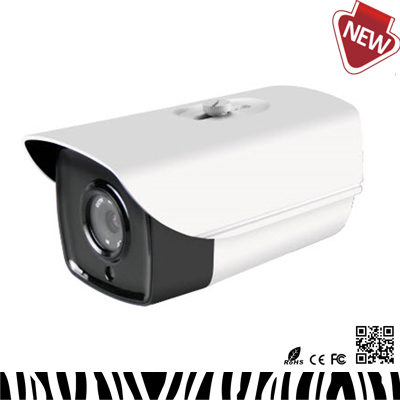

Product Name: 2.0MP AHD Bullet IR Camera-Z-AHD30A200M


General Features:

• Weatherproof IR bullet camera
• IP66 rated for indoor/outdoor installations
• 42µ x 2PCS Infrared LEDs, IR Distance 30M
• 1/2.7" OV 2.1MP CMOS Sensor
• 2.0 Megapixel, 1080P resolution
• IP66 rated plastic housing, bad weather and vandalism
• Shipped complete with mounting bracket
• Two-year limited warranty



Specification:

Model NO. Z-AHD30A200M
Video Output Mode AHD/CVBS
Camera
Image Sensor 1/2.7" OV 2.1MP CMOS Sensor
DSP NVP2441H
Image Resolution 1080P / 960H
Effective Pixels 1920*1080
TV System PAL/NTSC
Electronic Shutter 1/25s~1/50,000s , 1/30s~1/60,000s
S/N Ratio ≥50dB
Scanning System Progressive Scan
Lens
Focus Length 2.8mm
Focus Control Fixed
Lens Type Fixed
Pixels 3M Pixels
Night Vision
Infrared LED 42µ x 2PCS
Infrared Distance 30M
IR Status Under 10 Lux by CDS
IR Power On CDS Auto Control
Camera Features
Day/Night  YES
OSD Menu Language YES
White Balance AUTO / MANUAL
Gain Control AUTO
Noise Reduction 3DNR
Picture Adjustment YES
WDR YES
OSD Support YES
UTC Optional
General
Housing Plastic, IP66
Bracket Optional
IR Cut Filter YES
Operation Temperature -10o ~ +50o RH95% Max
Storage Temperature -20o ~ +60o RH95% Max
Power Source DC12V±10%, 500mA
Dimension 162(W) x 88(H) x 86(D)mm
Weight 600g
