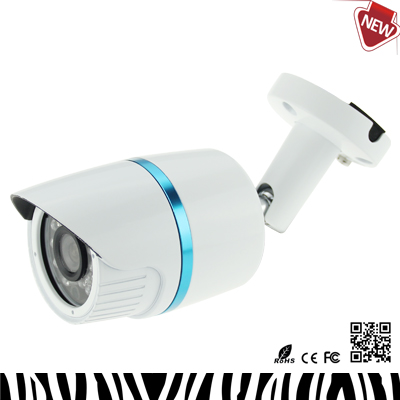

| Product Name: 2.0MP AHD Bullet IR Camera-Z-AHD20A200M |
 |
| |
General Features:
• Weatherproof IR bullet camera
• IP66 rated for indoor/outdoor installations
• 14µ x 18PCS IR LEDs, IR Distance 20M
• 1/4" OV2710 CMOS Sensor
• 2.0 Megapixel, 1080P resolution
• IP66 rated aluminum housing resists corrosion, bad weather and vandalism
• Shipped complete with mounting bracket
• Two-year limited warranty |
|
| |
SPECIFICATION:
|
Model |
Z-AHD20A200M |
|
Video Output Mode |
AHD/CVBS |
|
Camera |
|
Image Sensor |
OV2710 |
|
DSP |
NVP2441H |
|
Image Resolution |
1080P / 960H |
|
Effective Pixels |
1920*1080 |
|
TV System |
PAL/NTSC |
|
Electronic Shutter |
1/25s~1/50,000s , 1/30s~1/60,000s |
|
S/N Ratio |
≥50dB |
|
Scanning System |
Progressive Scan |
|
Lens |
|
Focus Length |
3.6mm |
|
Focus Control |
Fixed |
|
Lens Type |
Fixed |
|
Pixels |
3M Pixels |
|
Night Vision |
|
Infrared LED |
14µ x 18PCS |
|
Infrared Distance |
20M |
|
IR Status |
Under 10 Lux by CDS |
|
IR Power On |
CDS Auto Control |
|
Camera Features |
|
Day/Night |
YES |
|
OSD Menu Language |
YES |
|
White Balance |
AUTO / MANUAL |
|
Gain Control |
AUTO |
|
Noise Reduction |
3DNR |
|
Picture Adjustment |
YES |
|
WDR |
YES |
|
OSD Support |
YES |
|
General |
|
Housing |
Metal, IP66 |
|
Bracket |
YES |
|
IR Cut Filter |
YES |
|
Operation Temperature |
-10o~ +50o RH95% Max |
|
Storage Temperature |
-20o ~ +60o RH95% Max |
|
Power Source |
DC12V ± 10%, 500mA |
|
Dimension |
184(W) x 66(H) x 66(D)mm |
|
Weight |
800g |
|
|
| |
|
|
|
