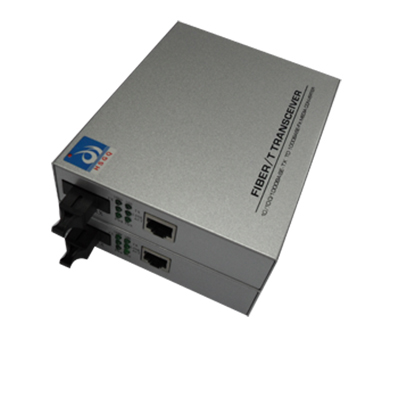

Product Name: 10/100/1000M Gigabit Fiber Media Convertor
Model: 1000WSC-20S


       Optical transcelver used in double wire and cable data communication between, suitable for intelligent village or to the desktop optical fibre connectors, automatically ADAPTS to 10 Mbps, 10000 Mbps transmission rate, the convenite user upgrades. It will network transmission distance from the twisted pair of the limit of the 100m expanded to 100km above, can easily achieve motherboard server. Repeaters, hubs, terminal and terminal of the interconnection connection.


  • Support optional light path failure monitoring function, report switch network management
  • Support hot swaps
  • Support IEEEE 802.1Q
  • Support SPANNING TREE structure fault-tolerent network
  • Automatic full-duplex and half-duplex conversion
  • Active adopted four layers circuit structure, stable work, smooth data transmissions tha anti-interference ability
  • With the german siemcns surface welding assembly lines processing
  • Average trouble-free more than 50000 hours, accord with standard telecommunication level operation


         Technical Specfications:

  100BaseFx 1000BaseFx
Band Width IEEE 802.3,802.3X
RJ 45 Port 10/100 Base T(X) 10/100/1000 Base T(X)
Wave Length 850nm/1310nm/1550nm
Fiber Port 100BaseFX 1000BaseFX

Optical Fiber:

  100BaseFX 1000BaseFX
Multi-mode Single-mode Multi-mode Single-mode
Distance 2km, 1310nm 25km, 1310nm 500m, 850m 2km, 1310nm 2km, 1310nm
Max. -20dBm -10dBm -10dBm -10dBm -10dBm
Min. -14dBm -3dBm -3dBm -3dBm -3dBm
Sensitivity <-18dBm <-30dBm <-18dBm <-18dBm <-22dBm

Power Requirements and Environmental Limits:

  100BaseFX 1000BaseFX
Input Voltage 5V
Power 5W
Operating Temperature -20~+6  °C
Storage Temperature -40~+85  °C
Ambient Relative Humidity 5~95%(non-condensing)


  100BaseFX 1000BaseFX
Internal Power supply With 2 RJ-45 External Power supply With 4 RJ-45 Internal Power supply External Power supply
Dimensions(mm) 94x70x25 140x110x30 215x110x30 94x70x25 140x110x30
Weight(g) 148 400 666 148 400

Out cartoon

240x120x58 230x160x70 295x175x95 240x120x58 230x160x70

Out cartoon Weight(g)

396 685 1055 396 685
