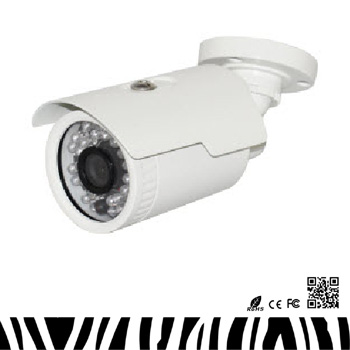

| Product Name: ZEBRA Bullet IR-ZBIR25P70 |
|
|
| |
General Features:
-
1/3" Color CCD, 700TVL
-
Outdoor Bullet IR Camera
-
Low Illumination
-
Board Lens 3.6mm/F2.0
-
Weight 600g
-
25 Meters (with ?5X30 Unit Infrared LED)
|
|
| |
|
Model NO.
|
ZBIR25P70
|
|
Camera
|
|
|
Image Sensor
|
1/3" COLOR CCD
|
|
Horizontal Resolution
|
700TV Lines
|
|
Effective Pixels
|
P/N: 350KP, 728(H)×488(V)
|
|
TV System
|
PAL/NTSC
|
|
Electronic Shutter Time
|
Auto: PAL 1/50-1/100, 000Sec; NTSC 1/60-1/100, 000Sec
|
|
Sync System
|
Internal
|
|
Usable Illumination
|
0.5Lux/F1.2
|
|
S/N Ratio
|
≥48dB
|
|
Gamma Correction
|
0.45
|
|
Scanning System
|
PAL: 625 Lines, 50 Field/Sec; NTSC: 525 Lines, 60 Field/Sec
|
|
Video Output
|
Composite Signal (1.0Vp-p, 75Ω)
|
|
Lens
|
|
|
Focus Length
|
3.6mm (4/6/8/12/16mm optional)
|
|
Focus Control
|
Fixed
|
|
Lens Type
|
Fixed
|
|
Pixels
|
2M Pixels
|
|
Night Vision
|
|
|
Infrared LED
|
5X30PCS
|
|
Infrared Distance
|
25M
|
|
IR Status
|
Under 10 Lux By CDS
|
|
IR Power On
|
CDS Auto Control
|
|
Camera Features
|
|
|
Day/Night
|
Color/ B&W
|
|
White Balance
|
AUTO
|
|
Gain Control
|
AUTO
|
|
General
|
|
|
Weatherproof Housing
|
YES
|
|
Anti-cut Bracket
|
YES, Cable built-in Bracket
|
|
IR Cut Filter
|
YES
|
|
Operation Temperature
|
-10oC ~ +50oC RH95% Max
|
|
Power Source
|
DC12V±10%, 700mA
|
|
Dimension
|
165(W) x75(H) x65(D)mm
|
|
Weight
|
600g
|
|
|
Made in Taiwan
|
|
|
| |
|
|
|
