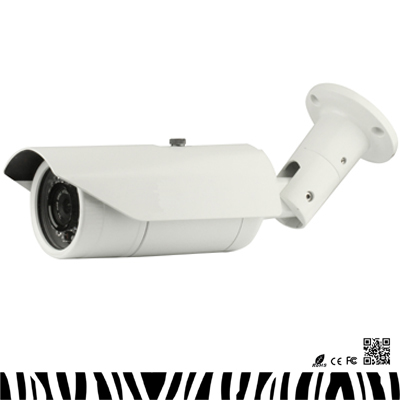

| Product Name: ZEBRA Bullet IR-ZBIR40S70 |
|
|
| |
General Features:
Weatherproof IR IP66 Camera
DWDR\OSD\DNR\BLC\Low Illumination
2M Pixels Fixed CS Lens8mm/F2.0
5X42PCS IR LEDS, IR Distance: 40M |
|
| |
|
Specification:
|
Model NO. |
ZBIR40S70 |
|
Camera |
|
|
Image Sensor |
1/3" SONY ICX811AK CCD, Enhanced "Effio-E" (CXD4140GG) DSP |
|
Horizontal Resolution |
700TV Lines |
|
Effective Pixels |
PAL: 570KP, 976(H)×582(V), NTSC: 480KP, 976(H)×494(V) |
|
TV System |
PAL/NTSC |
|
Electronic Shutter Time |
Auto: PAL 1/50-1/100, 000Sec; NTSC 1/60-1/100, 000Sec |
|
Sync System |
Internal |
|
Usable Illumination |
0.001Lux/F1.2 |
|
S/N Ratio |
≥52dB |
|
Gamma Correction |
0.45 |
|
Scanning System |
PAL: 625 Lines, 50 Field/Sec; NTSC: 525 Lines, 60 Field/Sec |
|
Video Output |
Composite Signal (1.0Vp-p, 75Ω) |
|
Lens |
|
|
Focus Length |
CS Lens 8mm (4/6/12/16mm is optional) |
|
Focus Control |
Fixed |
|
Lens Type |
Fixed |
|
Pixels |
2M Pixels |
|
Night Vision |
|
|
Infrared LED |
5X42PCS |
|
Infrared Distance |
40M |
|
IR Status |
Under 10 Lux By CDS |
|
IR Power On |
CDS Auto Control |
|
Camera Features |
|
|
Day/Night |
Color/ B&W |
|
Wide Dynamic Range |
DWDR |
|
Backlight Compensation |
YES |
|
White Balance |
AUTO |
|
Gain Control |
AUTO |
|
Noise Reduction |
2D NR |
|
Privacy Masking |
YES |
|
General |
|
|
Weatherproof Housing |
YES, IP66 |
|
Anti-cut Bracket |
YES, Cable built-in Bracket |
|
Power Source |
DC12V±10%, 1000mA |
|
Weight |
1.85Kg |
|
|
Made in Taiwan |
|
|
| |
|
|
|
