Product Name: 1ch Video Surge Protector

Mode: USP201V

Description: USP201V is a single channel video surge protection device, which is designed with reference to IEC61643-21:2000. The default working voltage is 5V, while the maximum sustaining working voltage is 6V. The voltage protection is less than 20V, and it possesses the following advantages, such as multi-level

Specification:

	Item	Specification
Video	Rated Operating Voltage	5V
	Max Continuous Operational Voltage	6V
	Nominal Discharge Current (8/20µs)	5KA
	Max Discharge Current(8/20µs)	10KA
	Impulse Limiting Voltage(10/700µs)	<36V
	Insulation resistance	≥0.4MΩ
	Inserting Loss	≤0.5dB
	VSWR	≤1.2
	Signal Bandwidth	10MHz
	Response time	≤1ns
Environment	Working Temperature	-20~55^oC
	Storage Temperature	-40~70^oC
	Humidity	0-95%
Appearance	N.W.	68g
	Size	65mm×25mm×25mm
	Material	Aluminum
Stability	MTBF	>30000hr

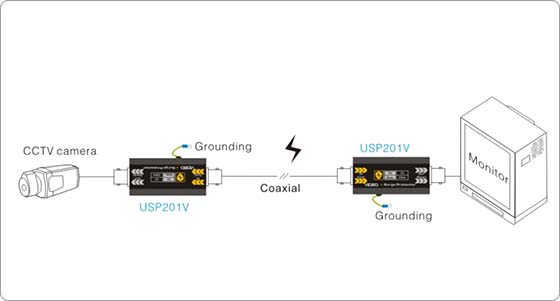

Application:
