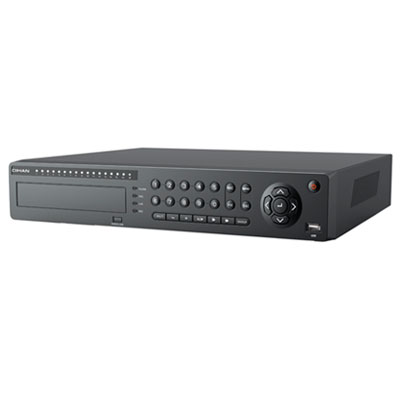

Product Name: 16CH Standalone DVR




Feature:

·

High Speed CPU 400/600MHz, Memory Space 2Gb, Flash 16MB with Excellent GUI Display.

·

H.264 Main Profile Video Compression, enhances 2.2 times of image quality and reduces 40% HDD occupation space.

·

Dual Encoding Streams Support, D1 / 2CIF / CIF / QCIF Resolution Programable.

·

Linux Operation System with D1 High Resolution Programable: QH-D2104A 4CH 25/30FPS @ D1; QH-D2108A 8CH 25/30FPS @ HD1; QH-D2116A 4CH 25/30FPS @ D1, 12CH 25/30FPS @ CIF.

·

Support 1080P HDMI Output Optional, Genuine HD VGA Output and BNC Output at the same time, 4/8/16 CH Video Loop Out Optional.

·

Cameras Power Supply by DVR.

·

Support 2 X SATA2.6 2TB HDD, Strong Storage Capacity for 4 Months Recording.

·

Digital Watermark for Video Data Protection.

·

Friendly Design for New User, No More than 5 Seconds Express Setup.

·

Support Audio Talk Back through Internet. More Convenience Comunication with Surveillance Control Center.

·

Support Motion Detection and Privacy Mask.

·

Support Smart Phone Remotely View by Windows Mobile, Symbian S60 3rd/5th, Iphone, IPAD, Blackberry OS5.0, Android.

·

REMOTE OPERATION: Remote View, Remote Playback, Remote Setup.

·

4/8/16 Channel Playback at the same time.

·

Flexible Search Mode with Time, Even, Channels and calendar.

·

Fast Backup with .avi and .264 Video Format Optional by USB Disk, Removable DVD-RW, SD Card.

·

Multi-DVR Powerful CMS Control / IE Explorer / Firefox Explorer / Google Chrome Explorer / MAC Safari Explorer.

·

Build-in IE Auto Active, Certificated by Microsoft, More Safety for PC.

·

Powerful Network Software: Built-in Web Server, Multi-DVR Client Software, Networking Access for Equipment Search Remote Live Viewing, Recording, Playback, Setting, System Statu, Event Log, Email & FTP Function.

·

Support LAN, WAN, Support 3G Dail Up / WIFI Module by USB 2.0 Port Optional.

·

Support DHCP / PPPOE / FTP / DNS / DDNS / NTP / Email alarm / IP right management / IP search / network alarm center functions, support WEB client, standalone client and SDK.

·

Multiple control methods: Front Panel, IR Remote Controller, USB Mouse, RS 485 Keyboard.

·

Alarm triggering screen tips, buzzer, PTZ Preset, Email, Snapshot & FTP Upload.

·

Smart HDDs Management:non-working HDD hibernationg,HDD faulty alarm, Raid function.

·

Build-in Digital Operation Guidance.

·

Smart Equipment Shut Down by Software, Front Panel. Good protection for Equipment.

·

Recording Parameter Programable by Clients.

·

Support 26 Kinds of Language: SimChinese, TradChinese, English, Farsi, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Poland, Portugal, Russian, Spanish, Thai, Turkey, Vietnamese, Romanian, Brazilian, Korean, Indonesian, Swedish, Arabic, Bulgarian, Czech.

·

Free customization according to your needs.

·

Support any view mode digital zoom.

·

Long time pre-record, up to 30 seconds.

·

Support palyback the defined timing by dragging the mouse on the time bar.

·

Support play the record file on the backup device directly.

·

Support large batch file backup simultaneously.

·

Support the RAID1 function and redundancy record.

·

Support record and backup with SD card(D22).



Specification:



Model NO QH-D3216A
OPERATION SYSTEM LINUX
Main Feature
CPU High Speed 600MHz
Memory Space 3Gb
Flash Memory 16MB
VIDEO
VIDEO SYSTEM NTSC/PAL Switch Selectable
INPUT BNC*16,1.0Vp-p,75ohm
Video Output 2 CH BNC(1.0Vp-p,75Ω); HD VGA Output;
SPOT NO
LOOP OUT NO
VGA OUTPUT 800 x 600, 1024 x 768, 1280x 1024
AUDIO
INPUT 8CH , RCA
OUTPUT 1CH,RCA
TALK BACK YES
CONTROL
MOUSE 2*USB2.0
IR CONTROLLER YES
STORAGE
BUILD IN INTERFACE SATA 2.6 *2(2*HDD 2TB )
DISPLAY
DIVISION 1, 4, 8, 9, 16
ZOOM Preview and Playback Zoom Support
RECORDING
COMPRESSION H.264 Main Profile
RECORDING MODE Manual/Schedule/Motion Detection/Sensor
RESOLUTION NTSC:704*480,704*240,352*240
PAL:704*576,704*288,352*288
RECORD FRAME RATE NTSC:210FPS@D1,420FPS@HD1,480FPS@CIF
PAL:175FPS@D1,350FPS@HD1,400FPS@CIF
(4CH D1 + 12CH CIF)
QUALITY Worst, Worse, General, Good, Better, Best
MOTION DETECTION Sensitivity: Multi Level,8*8Grid
PLAYBACK
PLAYBACK FRAME RATE(PAL) 480(400)FPS@CIF; 16CH CIF
MULTI CHANNEL PLAYBACK 1, 4, 8, 9, 16
SPEED Normal,Slow&FF(1/4,1/3,1/2,1,2*,3*,4*)
SEARCH METHOD Time, Event, Channels and Calendar
COMMUNICATION
REMOTE SOFTWARE Remote Client, IE Brower, Mobile, CMS, Firefox, Google Chrome, Safari
REMOTE OPERATION Remote view, remote playback, remote setup
NETWORK SERVICE TCP/IP,UDP,HTTP,DDNS,SMTP(SSL),LAN,DHCP,PPPOE
3G DEVICE Win Mobile, Symbian S60 3rd/5th, Iphone, Blackberry OS5.0, Android
3G External Module YES, with USB 2.0 Port, WCDMA Signal
WAN RJ45 10/100/1000 Mbit/s
WIFI External Module Yes, with USB 2.0 Port, 100Meters
GUI INTERFACE Supported GUI 16 Bit True Color
PTZ PROTOCOL 1*RS485, Support 18 Kinds of Protocol
BACKUP
INTERNAL Built-in DVD-RW (optional)
EXTERNAL 2*USB2.0; Removable DVD-RW
NETWORK YES
FILE H.264 Compression / AVI
GENERAL
ALARM IN/OUT 8CH / 1CH
RS-485 1
RS-232 1
UNIT DIMENSION(mm) W380xD368xH74mm
OPERATION TEMPERATURE 0oC~ 55oC
WORKING HUMIDITY 10% ~ 90%
POWER CONSUMPTION DC 12V,4A,10~15W (Exclude HDD)
