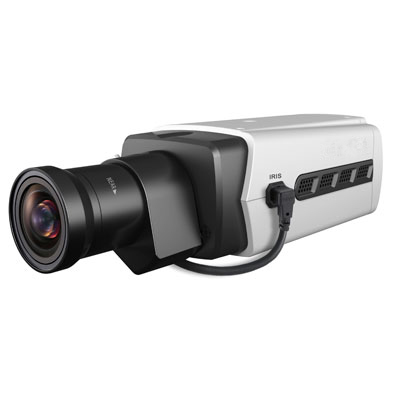

| Product Name: 5.0 Megapixel HD Network Camera |
5.0 Megapixel, 1/3" Progressive Scan CMOS with effective pixel 2560*1920, H.264 Support Triple Streaming Network Camera.
Model: QH-NB641 PRO
|
 |
| |
Feature:
* H.264 Main Profile@Level 3.0 , MPEG-4, M-JPEG, JPEG video encoding compression
* High-performance Build in 3A (AWB, AF, AE)
* Support 5.0 Mega Pixel: 2560X1920, 45 FPS @ 1280*720, 30 FPS@ 1920 * 1080 resolution real-time
encoding
* Can support 10 viewer to access concurrently
* Support triple encoding streams
* Support bi-directional and broadcasting real time audio transmission
* Support network self-adapting technology to adjust video frame rate automatically according to the network
bandwidth
* Support privacy protection mode , video loss detection, motion detection and sensor alarm functions
* Auto-retrieve function and auto-connection network |
|
| |
|
Specification:
|
Model NO. |
QH-NB641 PRO |
|
VIDEO |
|
Image Sensor |
1/3" Progressive Scan CMOS |
|
Resolution |
5.0 Mega Pixel, |
|
Effective Pixels |
2560X1920 |
|
Video Scanning |
Progressive |
|
IR CUT FILTER |
Support |
|
Lens Type |
C/CS AUTO IRIS |
|
Min. Illumination |
Color: 1 lux@F1.2, AGC onB/W: 0.5 lux @F1.2, AGC on |
|
AUDIO&VIDEO |
|
Audio Compression |
G.711 |
|
Talkback Input |
1 channel MIC interface |
|
Audio Output |
1 channel linear output |
|
Video Compression |
H.264 Main Profile@ Level 3.0 / MPEG-4/MJPEG/JPEG |
|
Video Frame Rate |
Main Stream/Sub-Stream/Triple Stream: 2560×1920, 10 fps 2048×1536, 15 fps 1920×1080, 30fps 1280*960, 37fps 1280*720, 45fps 640*480, 45fps 320*240, 45fps 160*112, 45fps |
|
Video Bitrate |
32Kbps~16Mbps |
|
OPERATIONAL |
|
Title OSD |
Supports channel name, date, and video stream information overlay; OSD location is adjustable |
|
SD Card Interface |
Support |
|
SD card supports Viedo storage and image snapping; SD2.0 standard, maximum storage 32G |
|
Storage mechanism |
Manual, Auto (cycle ,Fixed time, alarm switch, motion detection) |
|
Control Interface |
1 RS485 interface |
|
Network Interface |
RJ45 interface,for 10/100M network adaptive |
|
Alarm Input |
1-channel input, Normally Open/Normally Close modes adjustable |
|
Alarm Output |
1-channel output, 120VAC 1A/24VDC 1A |
|
Alarm data transmission |
FTP, E-mail, Browser, ISS Software |
|
FTP Protocol |
Support |
|
RTSP Protocol |
Support |
|
PC Client Browser |
Support IE6.0 and above(Device embedded Web Server), Support Firefox/Google Chrome/Safari Support 10 simultaneous users (MAX) |
|
Mobile Client Browser |
Support iPhone, Android |
|
Protocol support |
HTTP, TCP/IP, UDP, FTP, SMTP, PPPoE, DDNS, DNS, DHCP, NTP, RTSP, UPNP and so on |
|
ONVIF Protocol |
Support |
|
WiFi Network |
Support(optional) |
|
Wireless Encryption |
Support WEP, WPA, WPA2(optional) |
|
3G Network |
support(optional) |
|
POE |
Internal (optional) |
|
ENVIRONMENTAL |
|
Working Temperature |
-10oC~ +55oC |
|
Working Humidity |
0% - 90% |
|
MECHANICAL |
|
Power Input |
DC12V/AC24V Optional |
|
Dimension |
143*70*56mm |
|
Weight |
0.6KG |
|
|
| |
|
|
|
