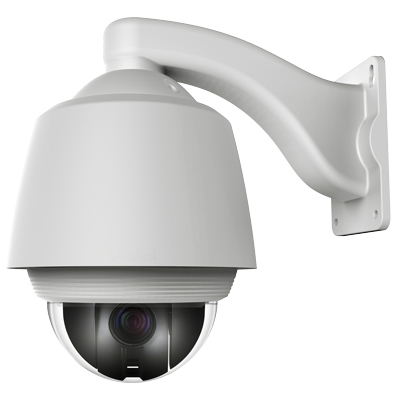

Product Name: HD Network PTZ Camera
1080P 6-inch Network PTZ Camera with H.264 Main Profile and support Onvif.
Model : QH-IP6131D-7FM
Model No. QH-IP6131D-7FM
Dome Type Outdoor
Pan range 0°~ 360° continuously
Vertical Swivel Range 0°~90° Automatically flip 180°
Manual speed 0.1~360°/sec
Vertical Speed 0.1~180°/sec
Preset speed 400°/sec
Preset accuracy ±0.10°
Presets 128 /256 Optional
CPU 32bit ARM Processor
Patrol 8 Tracks
Pattern 6 Lines(Pan/Tilt/Zoom, every line can record up to 120 seconds)
OSD menu English, Chinese, Spainish, Russian Optional
Image Sensor 1/2.8" Progressive scan CMOS
Effective Pixels 1920(H) x 1080(V)
Min. Illumination Color: 0.08lux, B/W: 0.005lux
Day/Night Manual/Auto Color to B/W
S/N Ratio ≥50db
Shutter Speed 1/1 1/10, 000 seconds, 22 steps
White Balance Auto, Auto Tracing White Balance (ATW), Indoor, outdoor, manual
BLC On/Off
WDR On/Off
Digital Noise Reduction On/Off
OSD Character Channel / date / time / stream information overlay, superimposed position adjustable
Compression H.264 Main Profile ,MJPEG/JPEG
Image resolution Main Stream: 1920x1080 @ 25/30fps,1280x720 @ 25/30fps
Sub Stream: 640x480,320x240,160x112 @ 25/30fps
Bit rate 32kbps to 4000kbps adjustable
Audio Compression G.726 G.711A G.711U
Data storage Video or capture
Security Password Protection
Users 10 users online at the same time
API SDK or ONVIF protocol
Alarm and Event
Alarm triggers Mobile alarm, sensor alarm, network failure
Motion Detection 4 Areas
Alarm data transmission Event Server: FTP, E-mail, browser, and management software
Ingress Protection IP66
Work tempreture –40oC~60oC
Work humidity 0%~90%
Heater Support
Lightning proof 6000V
Power 24VAC 2A 60Hz/50Hz
Power consumption 35W
