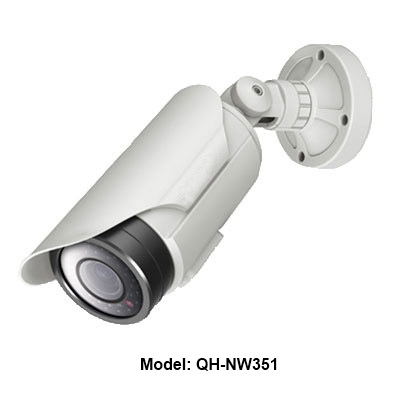

| Product Name: 1.3 Megapixel IR Waterproof Camera |
|
1.3 Megapixel IR Waterproof Camera ,1/3" Progressive Scan CMOS ,H.264 Support Triple Streaming.
|
 |
| |
|
|
Feature : |
|
· |
H.264 Baseline:4.0, MPEG-4, M-JPEG, JPEG video encoding compression |
|
· |
High-performance Build in 3A (AWB, AF, AE) |
|
· |
Support 30 FPS @ 1280*960 resolution real-time encoding |
|
· |
Can support multi-viewer to access concurrently |
|
· |
Support triple encoding streams |
|
· |
Support bi-directional and broadcasting real time audio transmission |
|
· |
Support network self-adapting technology to adjust video frame rate automatically according to the network |
|
· |
bandwidth·Support privacy protection mode, motion detection and sensor alarm functions |
|
· |
Auto-retrieve function and auto-connection network |
|
|
| |
Specification:
|
Model |
QH-NW351 |
|
Camera |
|
Sensor/DSP |
1/3" Progressive Scan CMOS |
|
Day/Night |
ICR |
|
Min. Illumination |
0.1lux @F1.2,AGC on,0 lux with IR on |
|
Lens |
2.8-12MM 2.0 Mega Pixel MF Fixed Iris |
|
IR LED |
42 LEDs |
|
IR Distance |
30~40m |
|
Electronic Shutter |
1/20~1/30000s |
|
Video |
|
Compression |
H.264/MPEG4/M-JPEG |
|
Max.image Resolution |
1280 x 960 |
|
Frame Rate |
30fps(1280 x 960) |
|
Bit Rate |
Stream 1: 1000~6000kps |
|
Stream 2: 512~2048kbps |
|
Stream 3: 64~256kbps |
|
Audio |
|
Compression |
G.711 |
|
Talkback |
YES |
|
Network |
|
Protocol |
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, FTP, UPNP |
|
Compliance |
ONVIF 2.1(1.02 backward compatible) |
|
PC Client and Browser |
ISS, IE6.0 and above |
|
Mobile phone |
Iphone, ipad, Android |
|
WIFI |
NA |
|
WIFI Encryption |
NA |
|
3G Network |
NA |
|
Interface |
|
Video Output |
1Vp-p composite output (75Ω /BNC) |
|
Audio Input |
1 CH 3.5mm audio interface, MIC IN/LINE IN |
|
Audio Output |
1 CH 3.5mm audio interface |
|
Alarm Input |
1 |
|
Alarm Output |
1 |
|
LAN |
1 RJ45 10M / 100M ethernet port |
|
RS-485 |
1 |
|
Storage Interface |
NA |
|
PIR |
NA |
|
General |
|
Working Temperature |
-10oC~ +55oC |
|
Working Humidity |
0% - 90% |
|
Protection Level |
IP67 |
|
Power Supply |
12 VDC ± 10% |
|
Power Consumption |
5.1W with IR ON ; 2.4W with IR OFF |
|
Dimensions |
185*88*86mm |
|
Weight |
1300g |
|
|
| |
|
|
|
