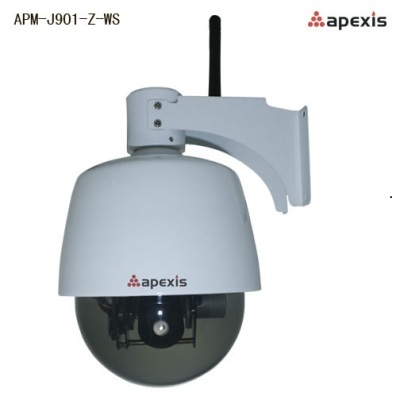

| Product Name: APM-J901-Z-WS Dome IP Camera |
 |
| |
New Feature:
> Supporting 3x Optical Zoom
> 4” compact design
> Iphone APP downloadable (app : Apexis IP Control)
> Support Gmail/Hotmail function
> 8 preset positions monitoring
> Free DDNS for Remote viewing
> Freely control alarm sound ON/OFF
> Freely control alarm record ON/OFF
> Up to 13 languages for worldwide users
Basic Feature:
> MJPEG video compression format
> Support two-way audio function
> Freely control upload image to FTP
> Freely control Pan/Tilt angle by software
> Freely control Pan/Tilt speed by software
> Support up to 9 users online simultaneously
> Motion detection alert with snapshots via email
> Allow remote view & record from anywhere anytime
> Multi-level user management with password protection
> Wi-Fi compliant with wireless standards IEEE 802.11b/g
> Support both WEP & WPA WPA2 encryption for wireless
> Support Mobile phone login from User Interface via browser directly
> Support IE, Safari, Firefox, Google chrome browser or any other standard
browsers |
|
| |
|
Specification: |
Model: APM-J901-Z-WS |
|
Image Sensor |
Image Sensor |
1/4" Color CMOS Sensor |
|
Display Resolution |
640 x 480 Pixels(300k Pixels) |
|
Lens |
3x Optical Zoom(4mm-9mm) |
|
Mini. Illumination |
0.5Lux, F2.0 |
|
Lens Type |
Glass Lens |
|
Viewing Angle |
30.7°~ 69° |
|
Audio |
Input |
1 channel audio input |
|
Output |
1 channel audio output |
|
Audio Compression |
ADPCM |
|
Video |
Image Compression |
MJPEG |
|
Image Frame Rate |
15fps(VGA),30fps(QVGA) |
|
Resolution |
640 x 480(VGA), 320 x 240(QVGA) |
|
Flip Mirror Images |
Vertical / Horizontal |
|
Light Frequency |
50Hz, 60Hz, Outdoor |
|
Video Parameters |
Brightness, Contrast |
|
Communication |
Ethernet Interface |
10Base-T/100Base-TX Ethernet Port |
|
Supported Protocol |
TCP/IP, DHCP, SMTP, HTTP, DDNS, UPNP, PPPoE, FTP, DNS |
|
Wireless Standard |
IEEE 802.11b/g |
|
Data Rate |
802.11b: 11Mbps (Max.), 802.11g: 54Mbps (Max.) |
|
Wireless Security |
WEP & WPA WPA2 Encryption |
|
Physical |
Pan/Tilt Angle |
Horizontal:355° & Vertical: 90° |
|
Alarm Input |
1 Channel on/off Input |
|
Alarm Output |
1 Channel relay Output |
|
Dimension |
165*195*130 mm |
|
Power |
Power Supply |
0° ~ 55°C |
|
Power Consumption |
20% ~ 85% non-condensing |
|
Environment |
Operate Temper. |
- 25°C ~ 55° |
|
Operating Humidity |
0% ~ 90% non-condensing |
|
Storage Temper. |
2.0GHZ or above (suggested 3.0GHz) |
|
Storage Humidity |
256MB or above (suggested 1.0GHz) |
|
PC System Requirements |
CPU |
64M or above |
|
Memory Size |
Microsoft Windows 2000/XP/Vista/7 |
|
Display Card |
IE6.0/7.0/8.0/Firefox/Safari/Google chrome or other standard browsers |
|
Supported OS |
CE, FCC, RoHS |
|
Browser |
Limited 1-year warranty |
|
|
| |
|
|
