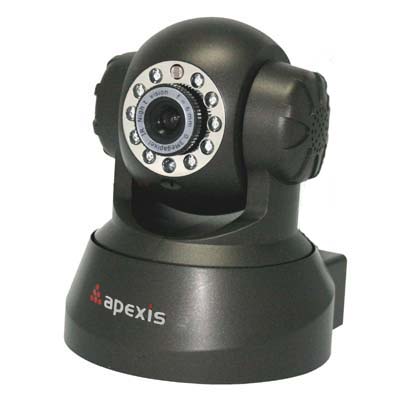

Product Name: IP Camera-APM-J011-POE

New Feature :

> Support POE function. (POE is available for wired model only)
> Iphone APP downloadable (app: Apexis IP Control)
> Support Gmail/Hotmail function
> 15 preset positions monitoring
> Free DDNS for Remote viewing
> Freely control alarm sound ON/OFF
> Freely control alarm record ON/OFF
> Up to 10 languages for worldwide users

Basic Feature :

> MJPEG video compression format
> Built-in Microphone and Speaker
> Support two-way audio function
> Freely control upload image to FTP
> Freely control network indicator LED on/off
> Support up to 9 users online simultaneously
> Motion detection alert with snapshots via email
> Freely control Pan/Tilt angle/speed by software
> Allow remote view & record from anywhere anytime
> Multi-level user management with password protection
> Support Mobile phone login from User Interface via browser directly
> Support IE, Safari, Firefox, Google chrome browser or any other standard browsers

 Specification: Model: APM-J011-POE
 Image  Sensor  Image Sensor 1/4" Color CMOS Sensor
 Display Resolution 640 x 480 Pixels(300k Pixels)
 Lens f: 6 mm, F:2.0 (IR Lens)    (3.6mm lens optional)
 Mini. Illumination 0.5Lux
 Lens  Lens Type Glass Lens
 Viewing Angle 60 Degree               (3.6mm lens is 90Degree)
 Audio  Input Built-in Microphone
 Output Built-in Speaker
 Audio Compression ADPCM
 Video  Image Compression MJPEG
 Image Frame Rate 15fps(VGA),30fps(QVGA)
 Resolution 640 x 480(VGA), 320 x 240(QVGA)
 Flip Mirror Images Vertical / Horizontal
 Light Frequency 50Hz, 60Hz or Outdoor
 Video Parameters Brightness, Contrast
 Communication  Ethernet Interface Build in 10/100Mbps,Auto MDI/MDIX , RJ-45
 Physical  Pan/Tilt Angle Horizontal:270° & Vertical: 120°
 Infrared Light 10 IR LEDs, Night visibility up to 10 meters
 Alarm Input 1 Channel on/off Input
 Alarm Output 1 Channel relay Output
 Dimension 100(L) x100(W) x120mm(H)
 Gross Weight 750g
 Color Box 210 x 130 x 190 mm
 Net Weight 550g ( accessories included)
 Power  Power Supply DC 5V/2.0A ( EU,US<, /st1:place>,AU adapter or other types optional)
Power Consumption 5 Watts (Max.)
 POE Optional
 Environment  Operate Temper. 0° ~ 55°C  (14°F ~ 131°F)
 Operating  Humidity 20% ~ 85% non-condensing
 Storage Temper. -10°C ~ 60° (14°F ~ 140°F)
 Storage Humidity 0% ~ 90% non-condensing

   PC System Requirements

 CPU 2.0GHZ or above (suggested 3.0GHz)
 Memory Size 256MB or above (suggested 1.0GHz)
 Display Card 64M or above
 Supported OS Microsoft Windows 2000/XP/Vista/7
 Browser IE6.0/7.0/8.0/Firefox/Safari/Google chrome or other standard browsers
  Certification  CE, FCC, RoHS
  Warranty  Limited 1-year warranty

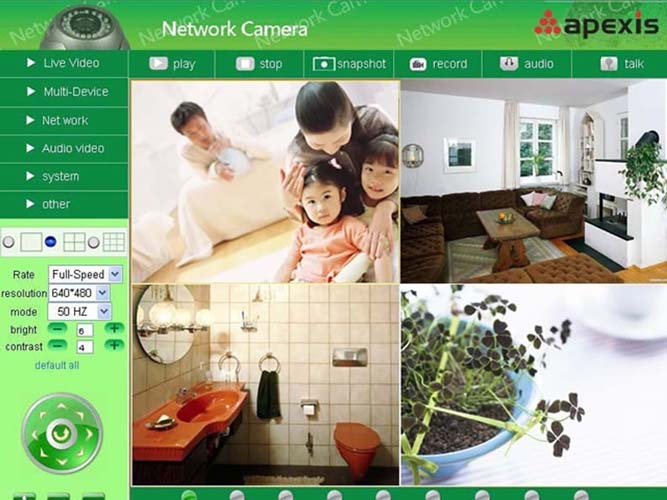

User Interface:
